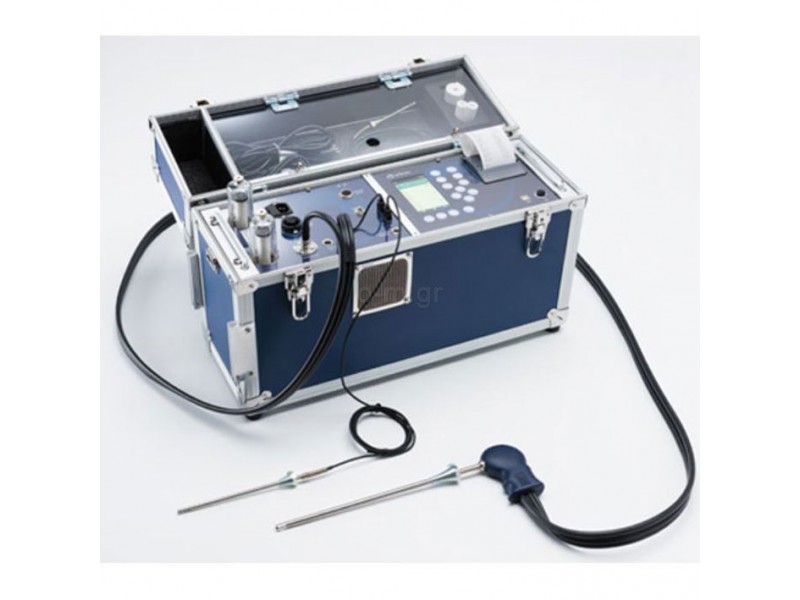

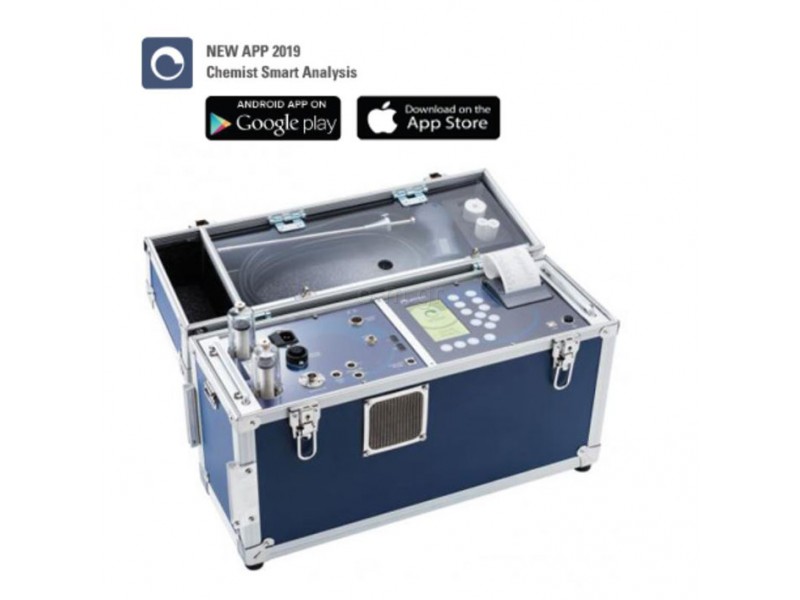

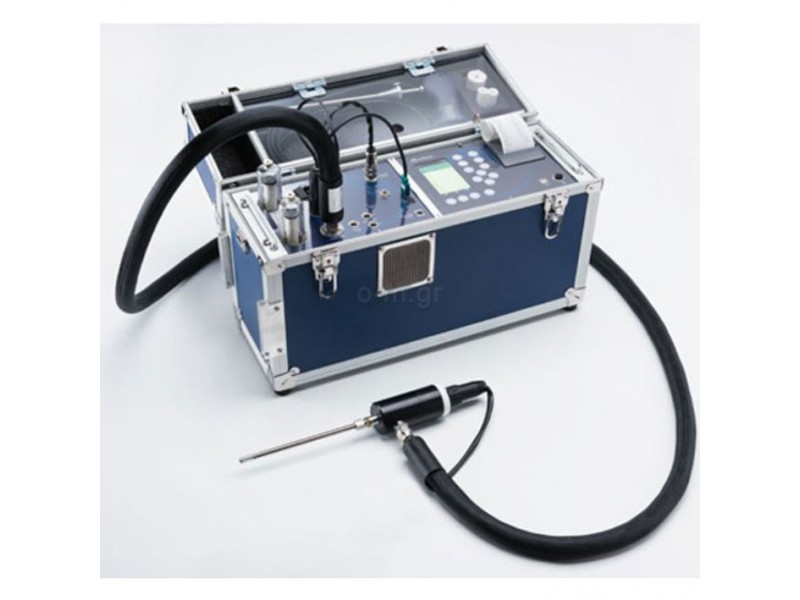

Emissions industrial analyzer, SEITRON, CHEMIST 900

The Chemist 900 industrial analyser can measure and store  values of gaseous emissions during the operation of industrial machinery and  it can also calculate combustion efficiency.

Main applications :

• Industrial gas and diesel motors
• Marine motors
• Cogeneration groups
• Industrial Gas Turbines
• Industrial Burners
• Emissions measurement of combustion gases post-treatment
• Industrial glass, ceramic and cement furnaces
• Furnaces for thermal treatment of metal
• Chemical and Pharmaceutical process industry
• Industrial analysis laboratories
• Biogas factories from vegetable and animal waste
• Official emissions measurements compliant to applicable regulations

Technical Features

• Measurement of up to 12 gaseous emissions simultaneously.
• 9  gases measured with individual sensors: electrochemical, pellistor, NDIR (Non-Dispersive Infra Red), FLEX series, identical to those used used in the hand held Chemist 500 analysers.
• Pre-calibrated FLEX-type gas measurement sensors which can be replaced in the field by the user.
• 3   gases (CO, CO2 e CH4) measured simultaneously with NDIR bench and dedicated anti dust filter. The NDIR bench ensures maximum measurement accuracy for the 3 gases, because there is no interference from other gases, as is the case with other electrochemical cells.
• Gases measured: O2, CO, CO/H2, CO2,  NO, NO2, SO2, H2S, CxHy.
• Fuel already in the memory: methane, LPG, butane, propane, propane-air mixtures, diesel, fuel oil, wood, wood chip, pellets, biogas, coal.
• Additional 16 fuels can be added provided the physical chemical characteristics are known.
• Vacuum pump for gas samples, dilution pump to extend the measurement field / CO cell protection.
• Auto-zero cycle for gas and pressure sensors even with sampling probe already inserted in the chimney.
• Flue gas,  combustion air, external air and other auxiliary temperatures measurement.
• Positive,  negative and differential pressure measurement.
• High accuracy and resolution draught measurement with external  accessory.
• Gas pipes  tightness test  with fittings accessory.
• Combustion analysis in automatic and manual modes.
• Data logger function.
• Gas sampling probes  in various materials and lengths.
• Gas sampling probe with heated head and hose to avoid   condensation.
• Special  sampling probe for internal combustion engines.
• Mechanical water trap or Peltier effect cooler anti-condensation system
• Double anti-dust filter
• Automatic condensation evacuation system with peristaltic pump.
• Data memory for up to 16,000 complete analyses.
• Type-B USB output for PC connection.
• Smart Flue Software for data storage and management.
• Bluetooth connectivity up to 100 m  (in open field).
• Operation with mains power 100… 240 V AC.
• Operation with internal rechargeable lithium ion battery power (not for heated line flue gas probe ).
• Robust metal housing with optional transportation trolley.
