Acid condensate pump Neotech NTH 330 XPH

Use the input field above in order to search our website by product name, model, brand or any other keyword. You must insert more than 2 characters in order to start your search.

  • Acid condensate pump Neotech NTH 330 XPH

Related Documents

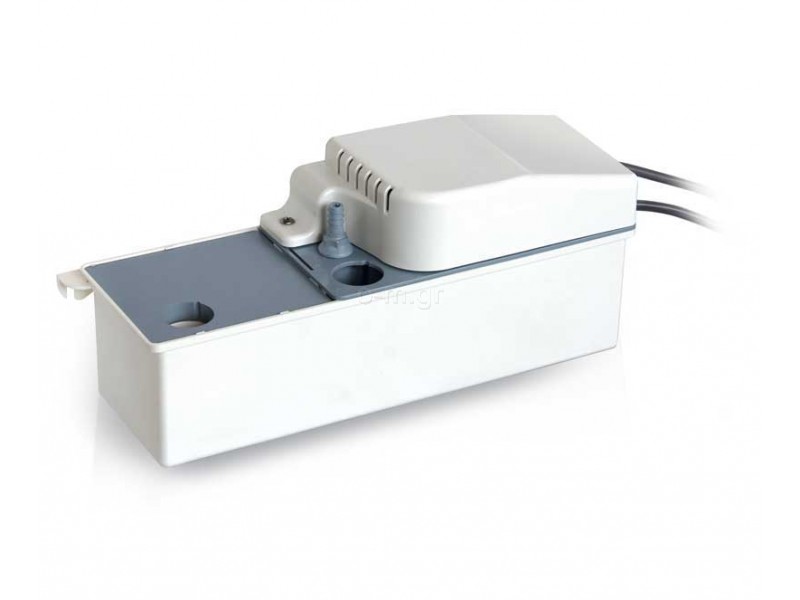

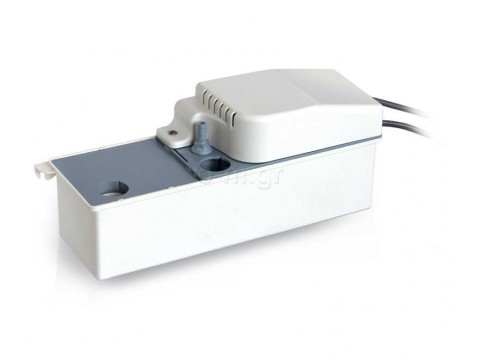

Acid condensate pump Neotech NTH 330 XPH

  • Brand: Neotech
  • Product Code: 14.18.01.13
  • Availability: In Stock
  • 161.74€
  • Ex Tax: 130.44€

The acid condensate pump NTH 330 XPH is designed to recover and discharge the condensate extracted from the boilers. The monoblock solution is suitable for all installations, especially when condensate discharge due to gravity is not feasible.

  • Easy and fast replacement of the neutralizer


General
Weight 3 kg
Dimensions 330 x 104 x 134
Certifications CE
Protection class IP 20
Sound level 45 dBA
Tank volume 0.8 l
Electrical characteristics
Power supply 230 V - 50 Hz - 0.75 A
Contacts NC and NA (max 5A - 250V)
Mechanological characteristics
Max flow 370 l/h
Max head 4,6 m
Max thermal power 50 kW
Chemical characteristics
Minimun operation acidity 2,8 pH
